Introduction

This chapter addresses the challenge of designing a unique ID generator for distributed systems. Traditional auto-increment keys are unsuitable in distributed environments due to scalability and synchronization challenges. The focus is on creating unique, sortable, 64-bit numerical IDs that meet the following requirements:

  • IDs must be unique and ordered by date.
  • IDs must fit within 64 bits.
  • The system should generate over 10,000 IDs per second.

Step 1: Understanding the Problem

Basic Requirements

  • IDs must be unique and numerical and should fit in 64 bi.
  • IDs increment with time but not strictly by +1.
  • IDs should be sortable by date.
  • System must handle high throughput (10,000 IDs/sec).

Step 2: High-Level Design Options

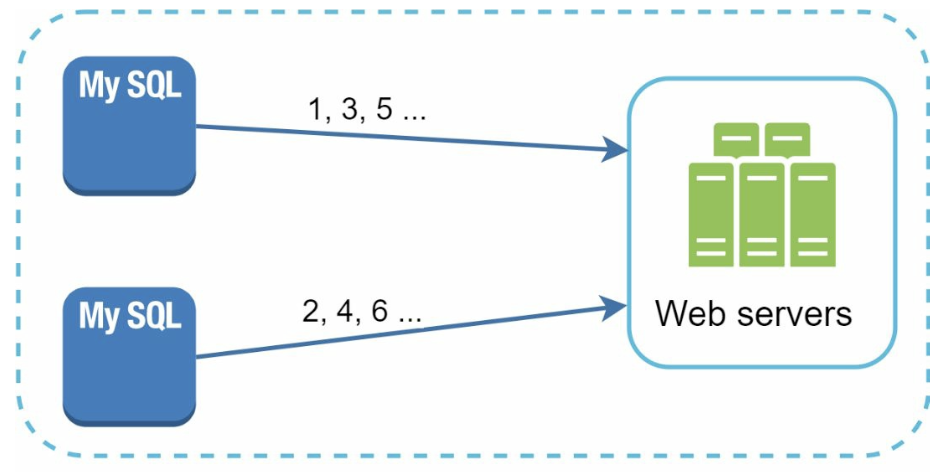

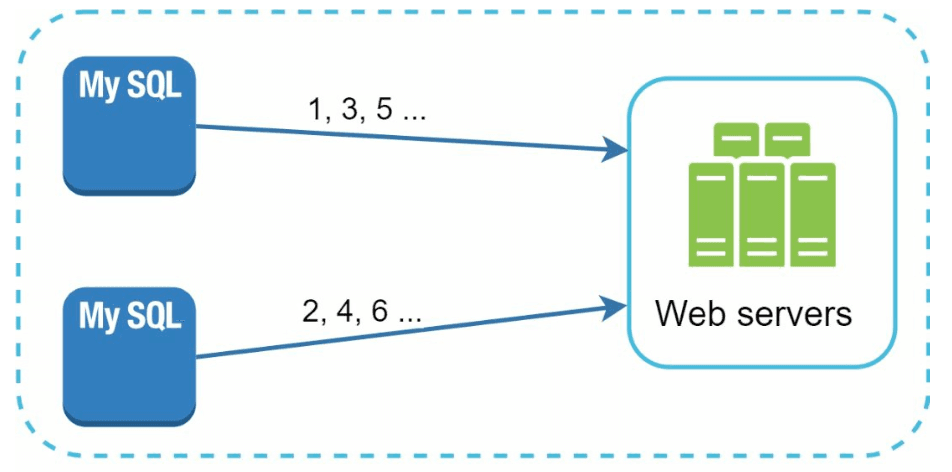

1. Multi-Master Replication

  • Approach: Use database auto_increment with step increments (e.g., +k for k servers).

    Multi Master

  • Drawbacks:

    • Hard to scale across data centers.
    • IDs do not always increase with time.
    • Scaling issues when servers are added/removed.

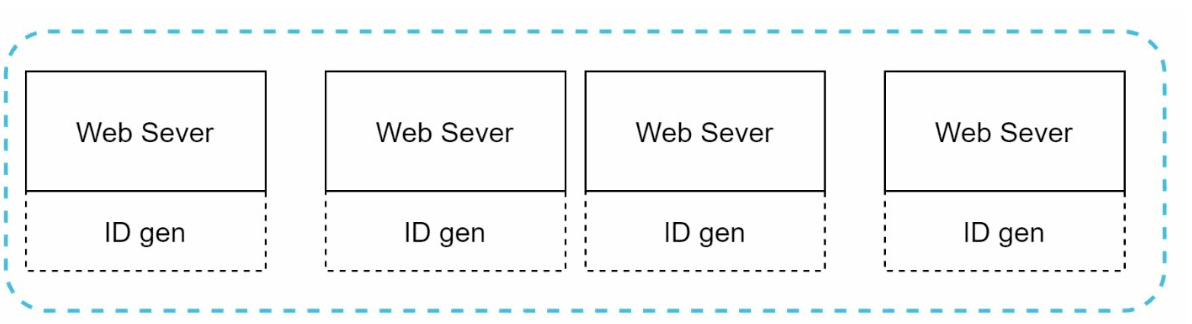

2. UUID (Universally Unique Identifier)

  • Approach:

    • Generate 128-bit unique identifiers independently on each server using UUID.

    • UUIDs can be generated independently without coordination between servers

      UUID generator

  • Advantages:

    • No coordination needed between servers.
    • Scales easily with web servers.

  • Drawbacks:

    • Exceeds 64-bit requirement.
    • IDs are not sortable by time and may be non-numeric.

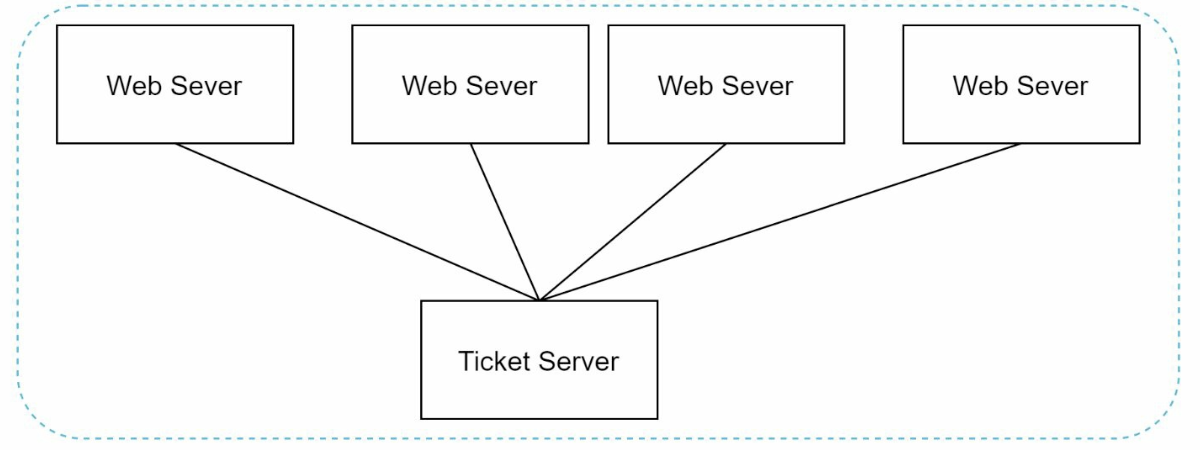

3. Ticket Server

  • Approach: Use a centralized database server to increment and assign IDs.

    UUID generator

  • Advantages:

    • Simple to implement for small-scale systems.
    • Generates numeric IDs.

  • Drawbacks:

    • Single point of failure.
    • Synchronization challenges in multi-server setups.

4. Twitter Snowflake Approach

  • Approach:

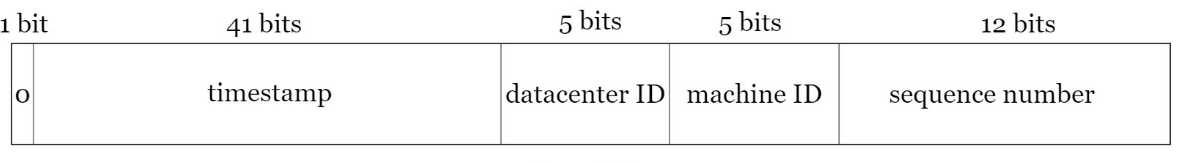

    Snowflake approach

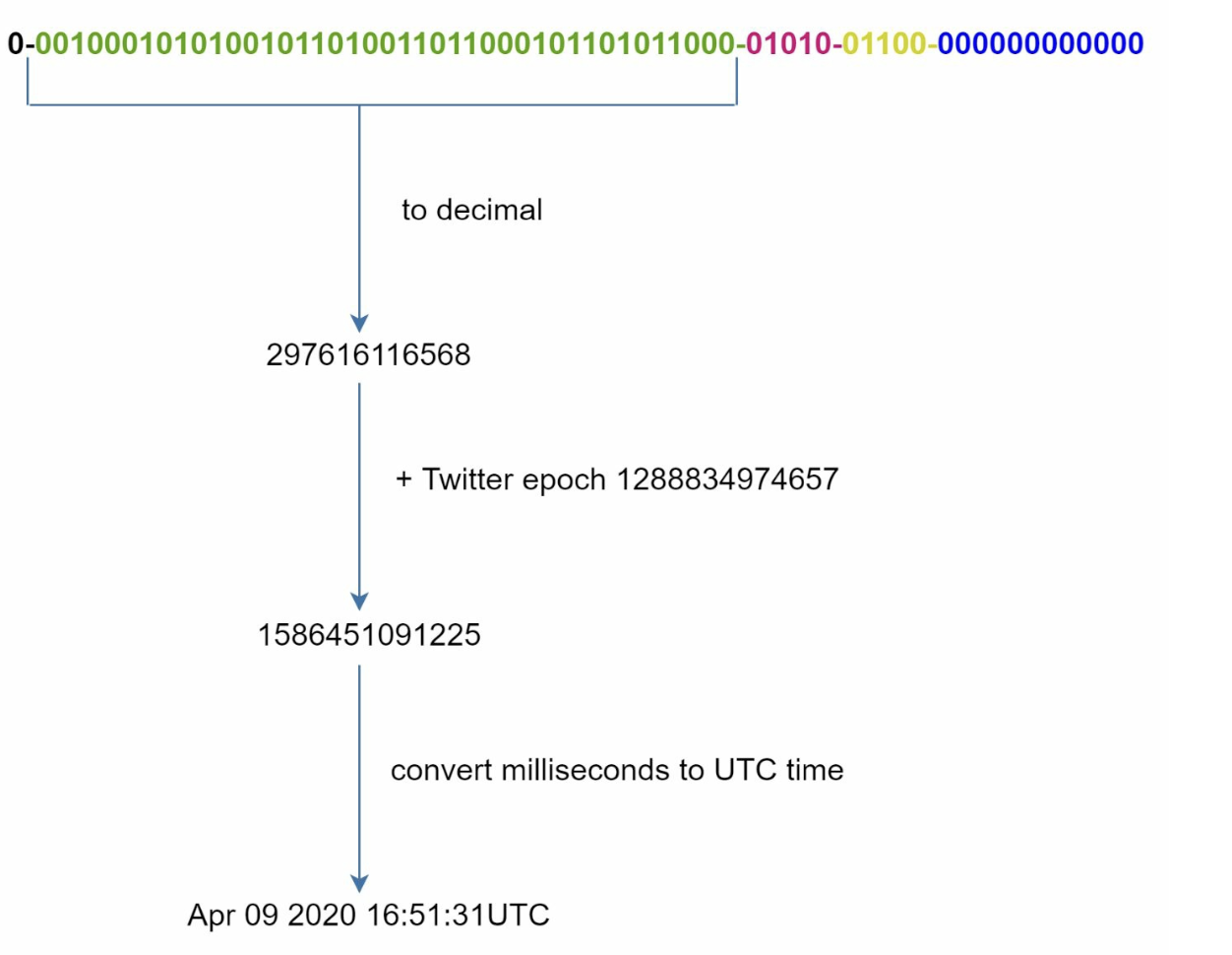

    Snowflake ID breakdow
    - Divide IDs into sections to ensure uniqueness and scalability. - **Sign Bit (1 bit):** Always `0`, potentially distinguishing signed and unsigned numbers. - **Timestamp (41 bits):** Milliseconds since a custom epoch (Twitter's default is `1288834974657`, equivalent to Nov 04, 2010, 01:42:54 UTC). Ensures IDs are time-ordered. - **Datacenter ID (5 bits):** Identifies up to `2^5 = 32` datacenters. - **Machine ID (5 bits):** Identifies up to `2^5 = 32` machines within each datacenter. - **Sequence Number (12 bits):** Tracks IDs generated on a machine within the same millisecond, supporting up to `2^12 = 4096` IDs per millisecond. The sequence resets to `0` every millisecond.

  • Advantages:

    • Scalability: Handles 10,000+ IDs per second across multiple servers.
    • Time-Order: Ensures IDs are sortable by time.
    • Decentralization: No single point of failure.

Step 4: Additional Considerations

1. Clock Synchronization

  • Challenge: ID generation assumes synchronized clocks across servers.
  • Solution: Use Network Time Protocol (NTP) to minimize drift.

2. Section Length Tuning

  • Adjust section sizes (e.g., fewer sequence bits, more timestamp bits) based on use case.

3. High Availability

  • ID generators are mission-critical and must be fault-tolerant.
  • Consider redundancy and failover mechanisms.
