Introduction

Autocomplete, also known as typeahead or incremental search, provides real-time suggestions to users as they type in search boxes. The system must efficiently deliver top-k relevant and popular suggestions based on historical query data.

Key Features

  • Suggest up to 5 autocomplete results.
  • Based on query popularity (frequency).
  • Support only lowercase English characters.
  • Fast response time (<100 ms) and scalable.

Step 1: Understanding the Problem

Requirements

  1. Real-Time Suggestions: Display relevant matches as the user types.
  2. Top-k Results: Return up to 5 results sorted by popularity.
  3. Scalability: Handle 10 million DAU with a peak QPS of 48,000.
  4. High Availability: Handle failures without system downtime.
  5. Data Growth: Support daily storage growth of 0.4 GB for new query data.

Step 2: High-Level Design

At the high-level, the system is broken down into two services:

  1. Data Gathering Service:

    • Collects user queries and aggregates them for frequency analysis in real-time.
    • Real-time processing is not practical for large data sets; however, it is a good starting point

  2. Query Service: Provides the top-k suggestions based on the user’s input.

Data Gathering Service

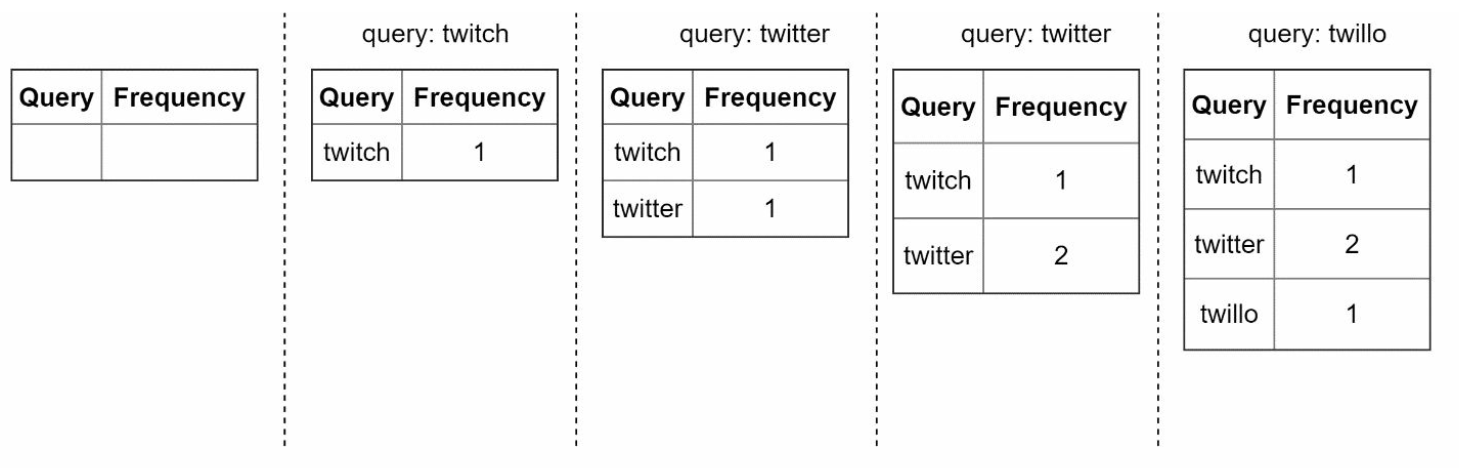

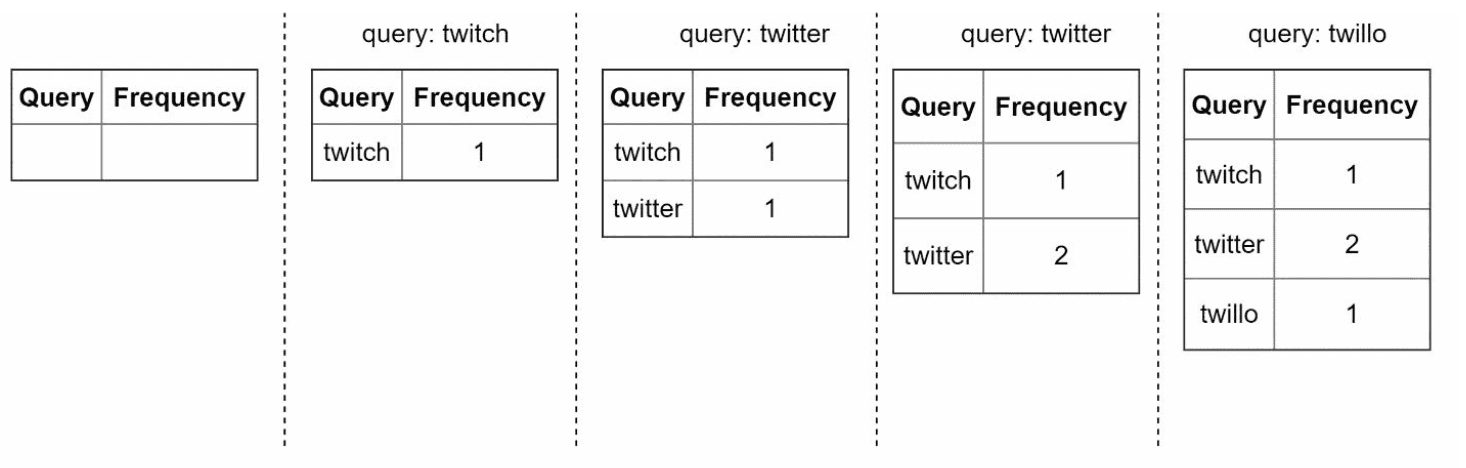

Data Gathering
  • Aggregates query data from analytics logs and updates the frequency table.
  • Processes historical data weekly to build a trie (prefix tree).

Query Service

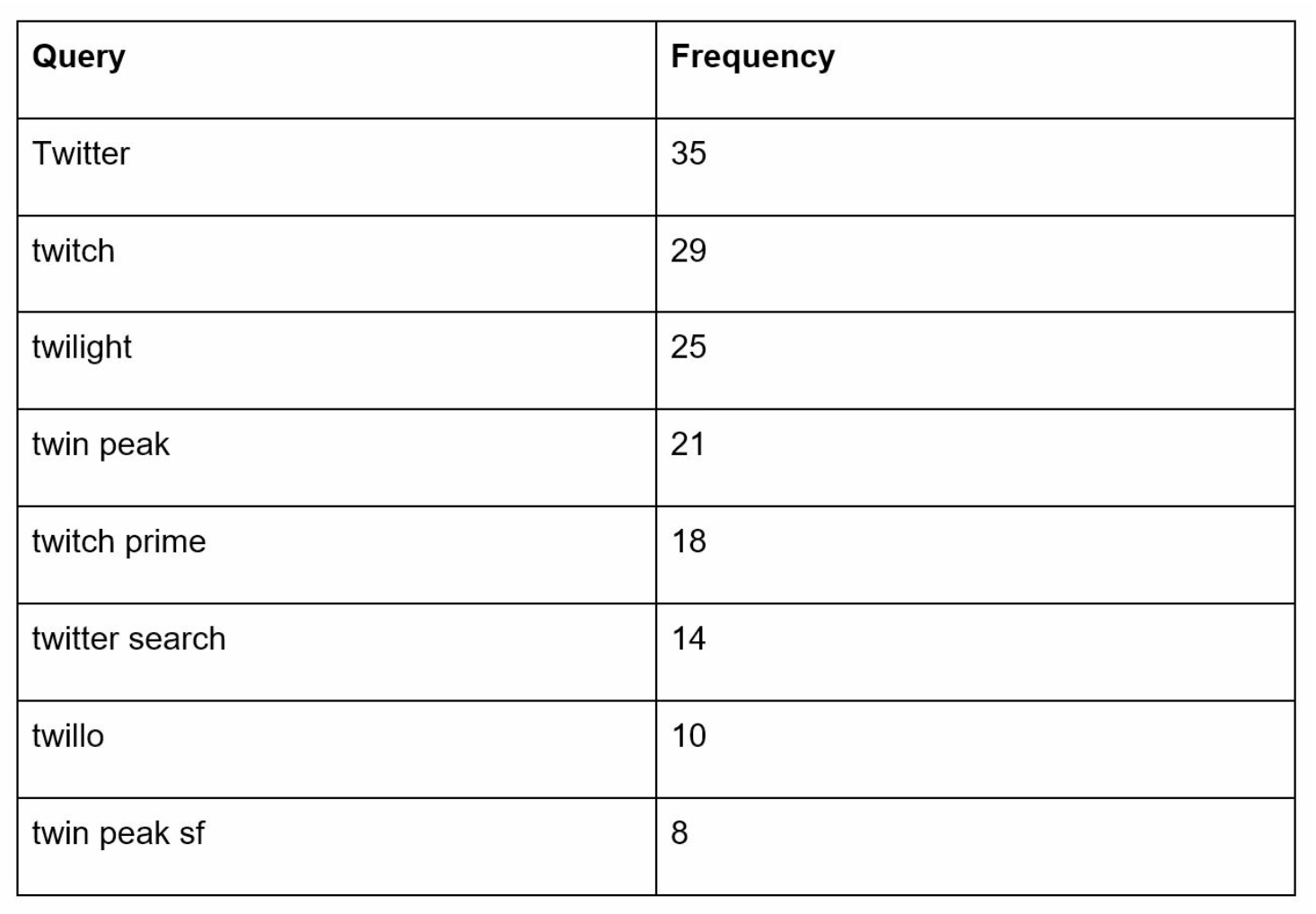

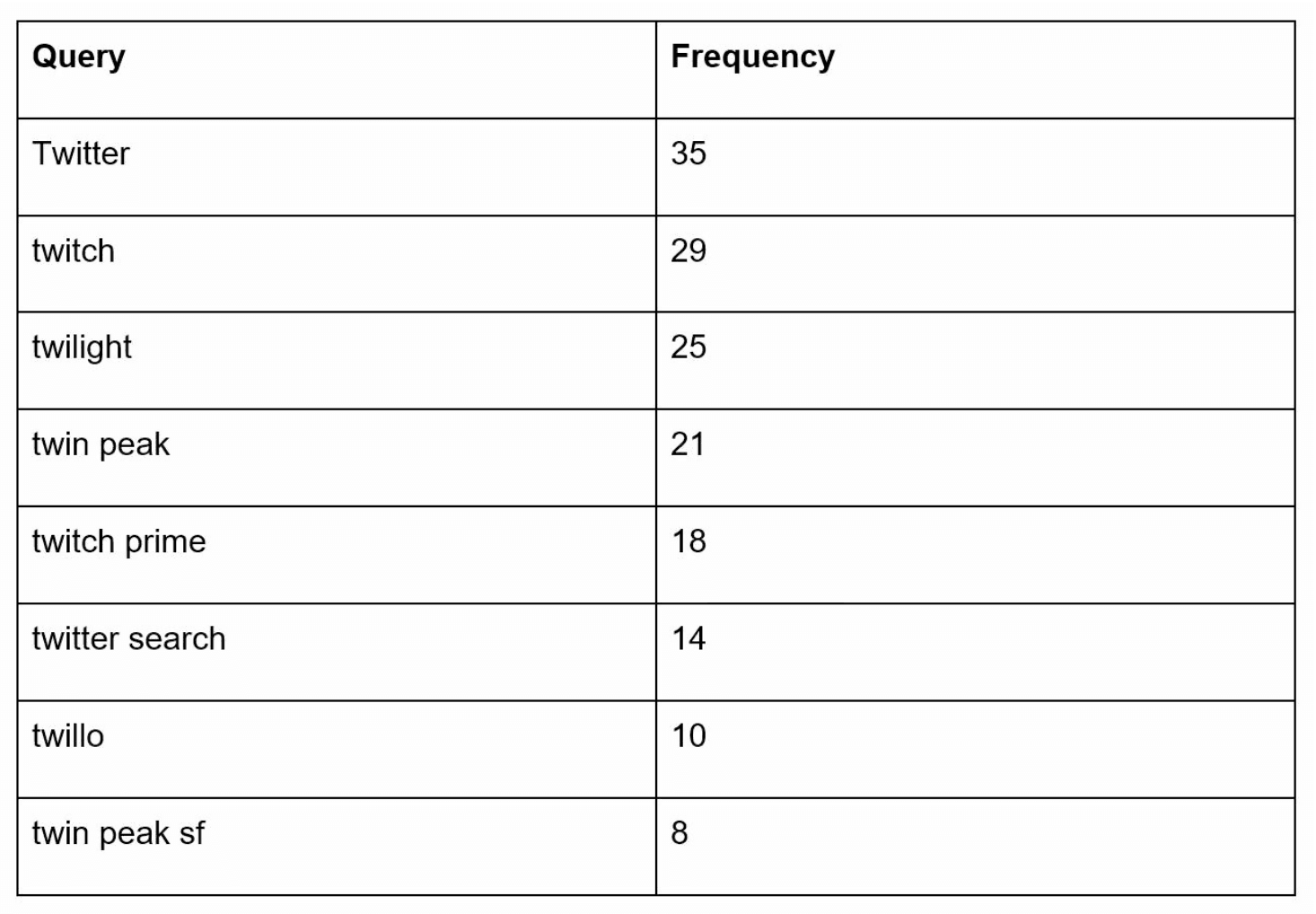

Frequency Table Search Suggestions
  • Uses the frequency table from data gathering service.
  • Processes user input and retrieves top-k suggestions from the frequency table using a Trie.
  • Optimized for fast lookups using caching and efficient data structures.

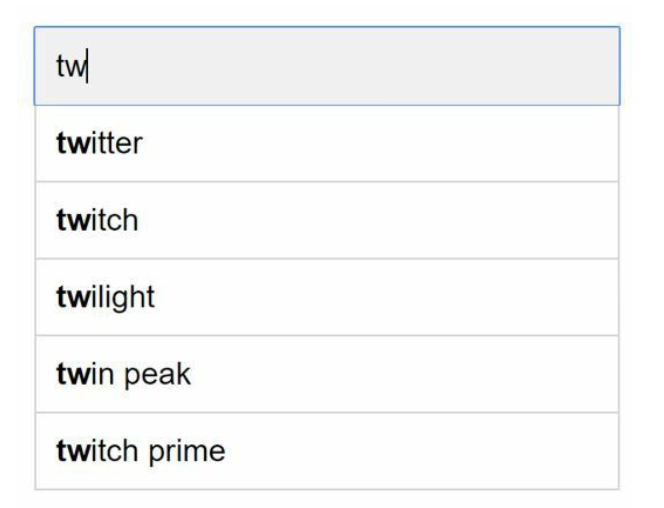

  • For example when a user types “tw” in the search box, the following top 5 searched queries are displayed.

Step 3: Design Deep Dive

Trie Data Structure

The trie is a tree-like data structure used to store and retrieve query strings efficiently.

Key Features

  1. Compact Storage: Represents prefixes hierarchically to minimize redundancy.

  2. Frequency Information: Stores the popularity of queries at each node.

  3. Steps to get top k most searched queries

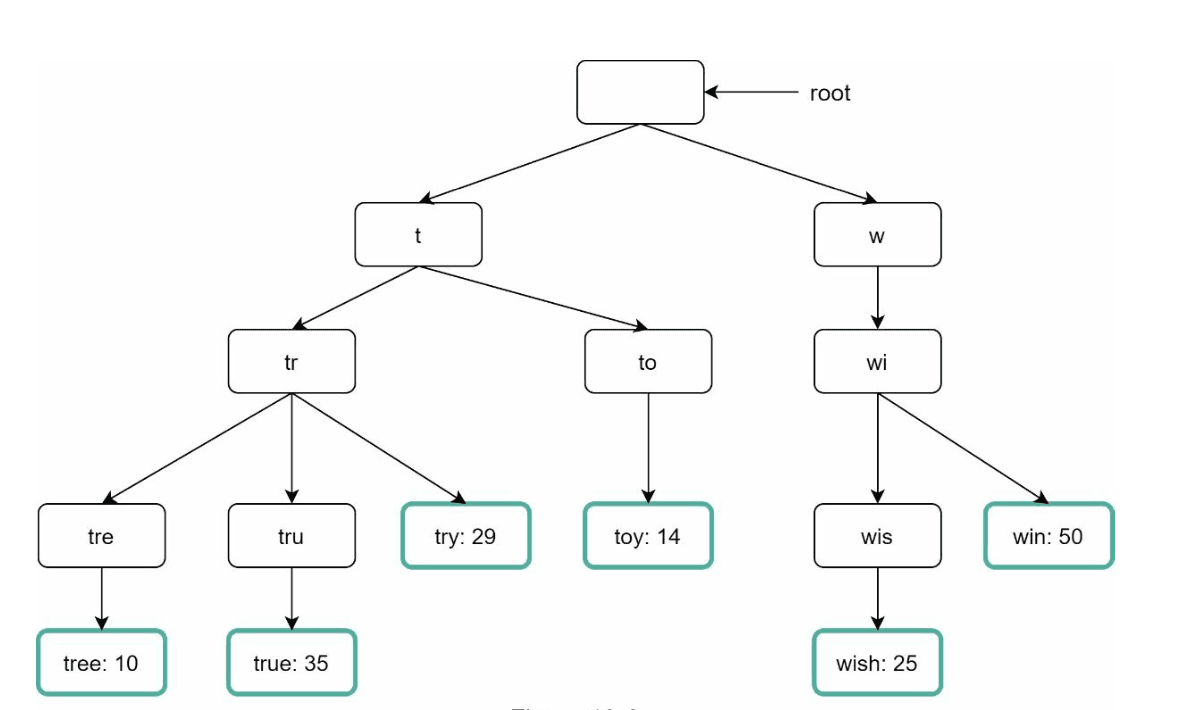

    Trie Structure
    - Find the prefix - Traverse the subtree from prefix node to get all valid children - Sort the children and get top k

  4. Optimizations:

    • Cache top-k queries at each node to speed up retrieval and avoid traversing the whole trie.

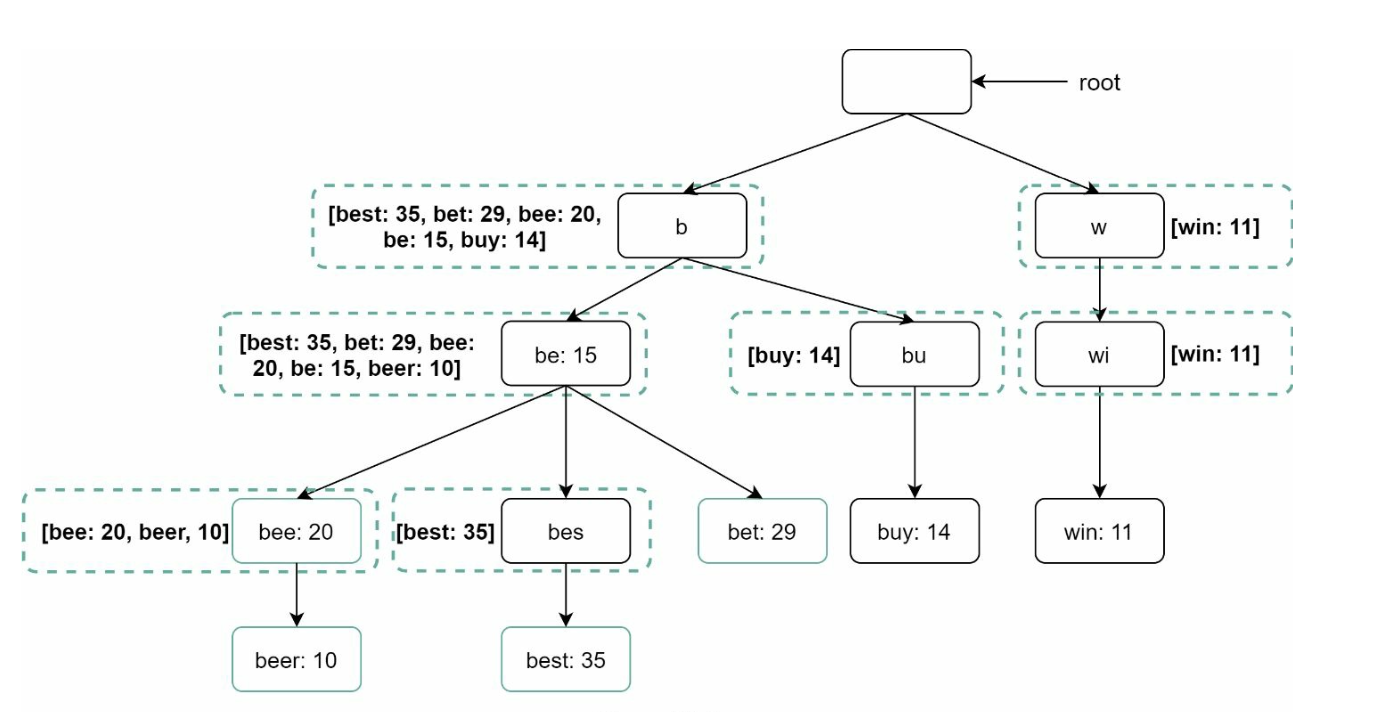

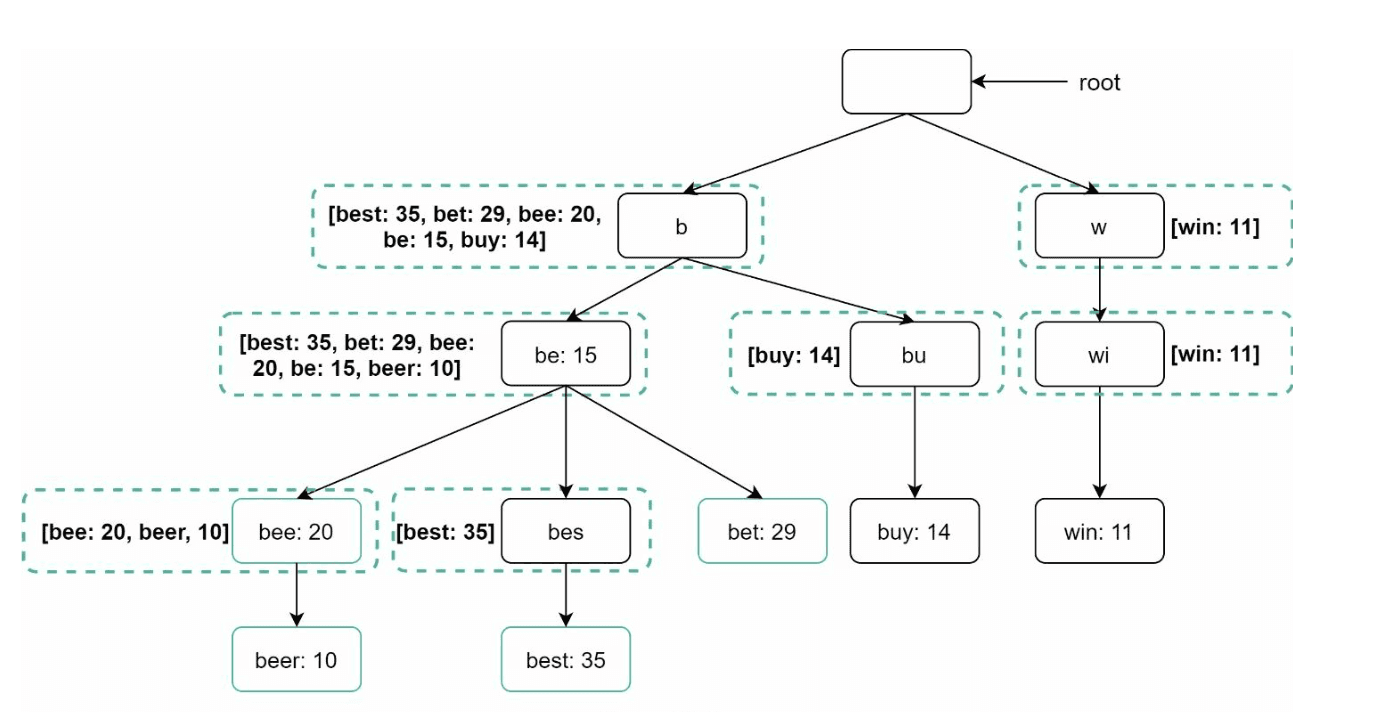

      Cached Trie

    • Limit prefix length to reduce search space as users rarely type a loong search query (say 50).

Trie Operations

  1. Create:
    • Built weekly using aggregated query data.
    • The source of data is from Analytics Log/DB.
  2. Update: Rarely updated in real-time; weekly updates replace old data.
  3. Delete:

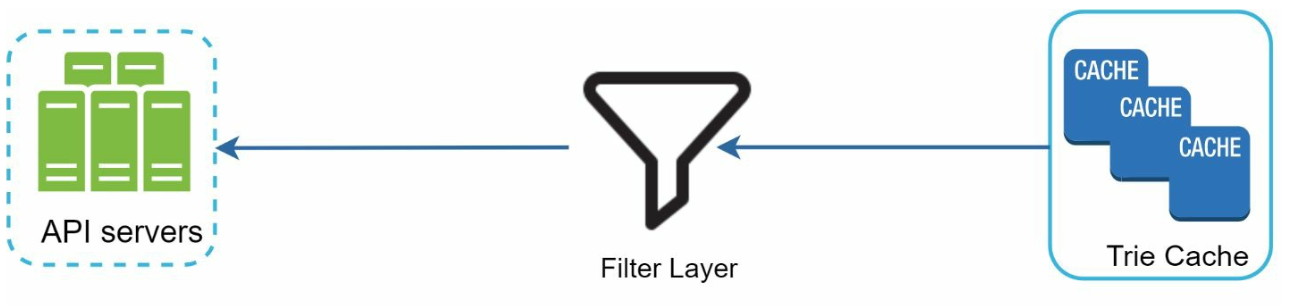

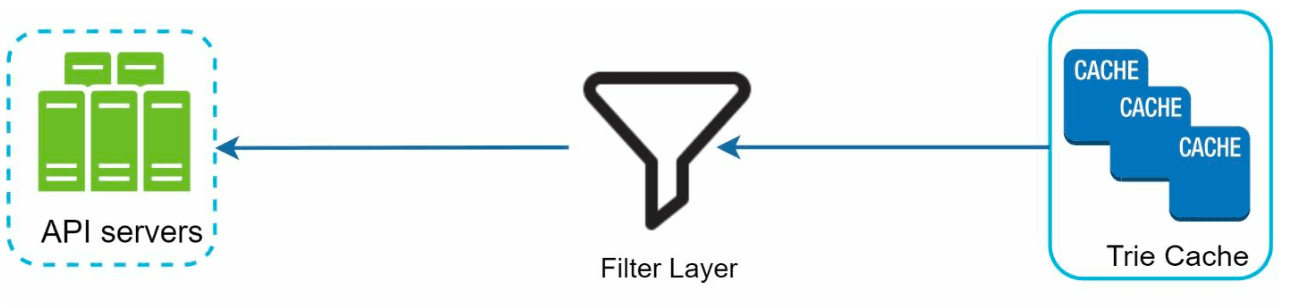

    Delete KV
    - Filters remove unwanted or harmful suggestions (e.g., hate speech). - Having a filter layer gives us the flexibility of removing results based on different filter rules. - Unwanted suggestions are removed physically from the database asynchronically.

Query Processing Flow

  1. Prefix Search:
    • Identify the prefix node corresponding to the user’s input.
    • Traverse the subtree to collect valid suggestions.
  2. Top-k Sorting:
    • Cache top-k suggestions at each node to minimize sorting overhead.
  3. Response Construction:
    • Construct results using cached data for fast response times.

Optimizations

  1. Cache at Each Node:
    • Store the top-k queries to avoid redundant traversals.
  2. Limit Prefix Length:
    • Cap prefix length to a small value (e.g., 50 characters) for faster lookups.
  3. AJAX Requests:
    • Use lightweight asynchronous requests for real-time responses.
  4. Browser Caching:
    • Save autocomplete results in the browser cache for frequently searched terms.

Data Gathering Pipeline

In the high-level design, whenever a user types a search query, data is updated in real-time. This appraoch is not practical.

  • Users may enter billions of queries per day. Updating the trie on every query is not feasible.
  • Top suggestions may not change much one the trie is built.

Updated Design

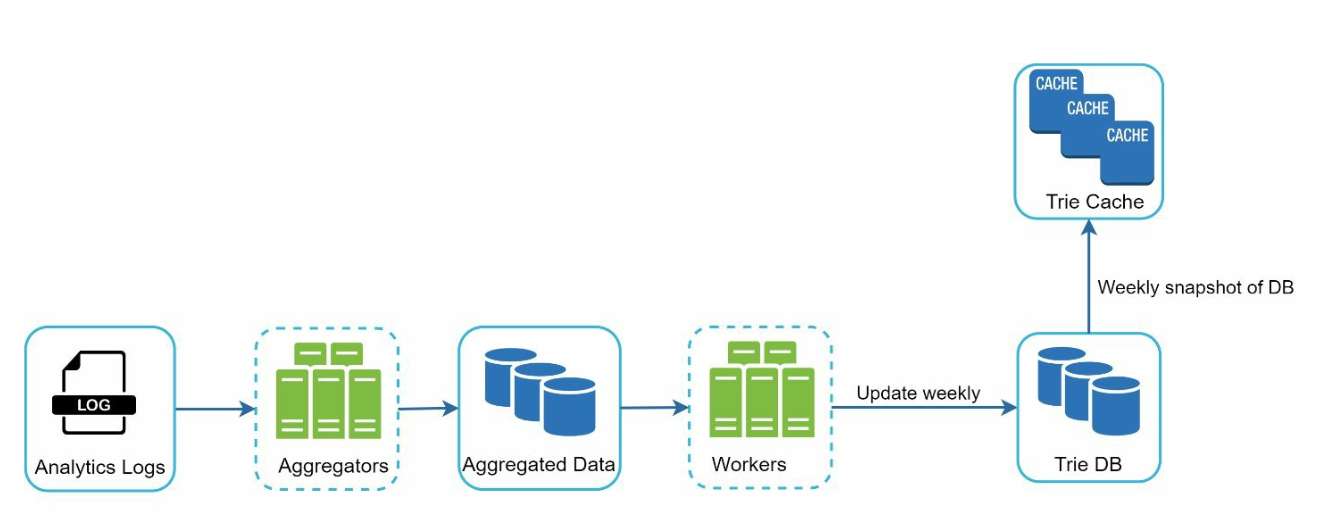

Updated Data Gathering Flow
  1. Analytics Logs:
    • Stores raw query data as logs for weekly aggregation.
    • Logs are append-only and are not indexed
  2. Aggregators:
    • Process logs into frequency tables, suitable for trie construction.
    • For real-time applications such as Twitter, aggregate data in a shorter time interval.
    • For other cases, aggregating data less frequently, say once per week is good enough.
  3. Workers:
    • Asynchronous servers rebuild the trie and store it in persistent storage.
  4. Storage Options:
    • Trie Cache: Trie Cache is a distributed cache system that keeps trie in memory for fast read.
    • Trie DB
      1. Document Store (e.g., MongoDB): Since a new trie is built weekly, we can periodically take a snapshot of it, serialize it, and store the serialized data in the database like MongoDB
      2. Key-Value Store:

        • Maps prefixes to node data for fast access.

        • Every prefix in the trie is mapped to a key in a hash table.

        • Data on each trie node is mapped to a value in a hash table.

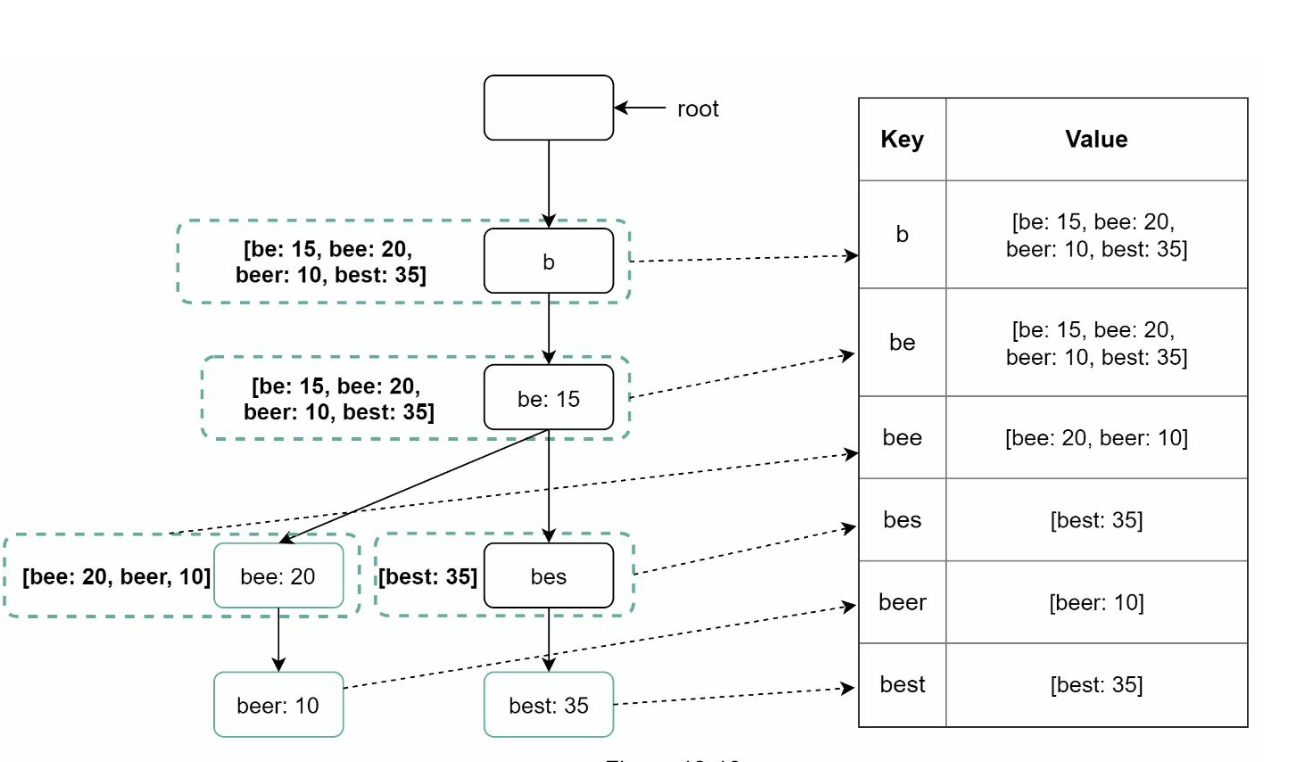

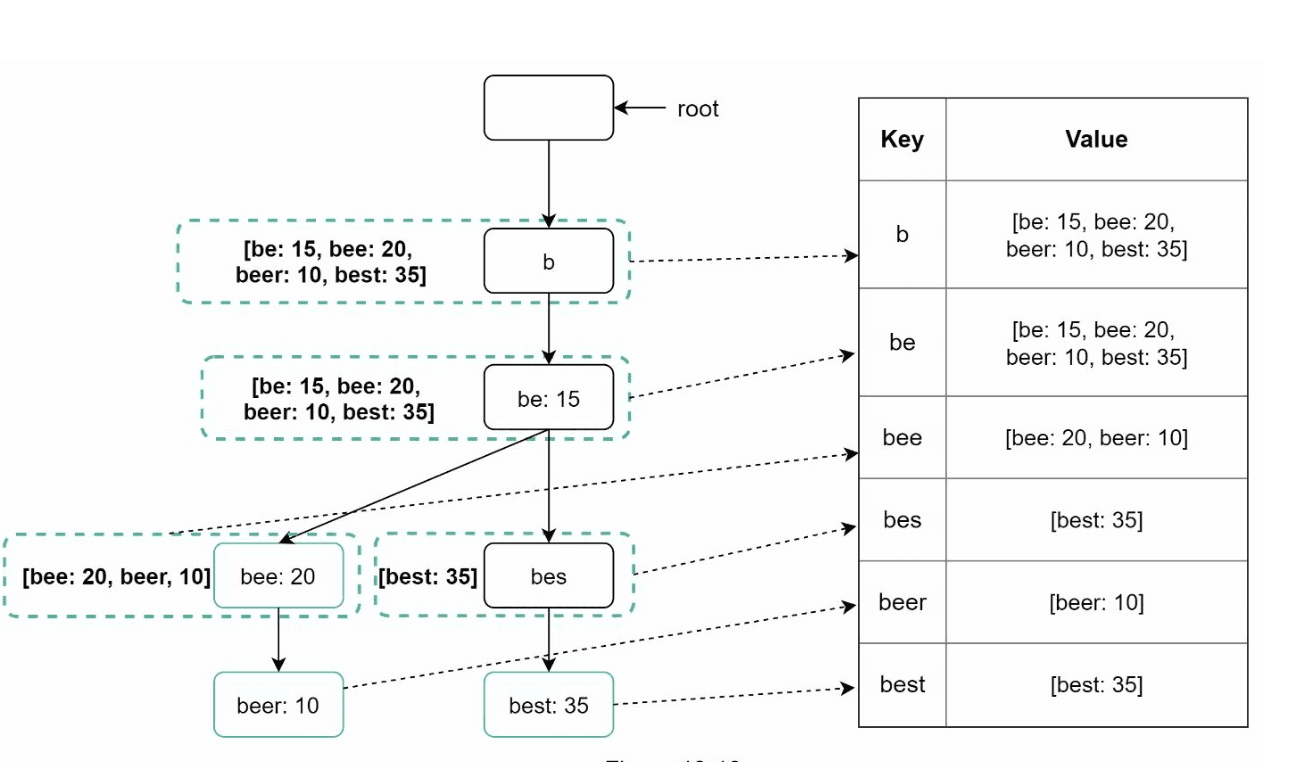

          Trie DB

Scalability

  1. Sharding:
    • Distribute trie nodes across servers based on prefix ranges (e.g., a-m, n-z).
    • Further shard within prefixes to balance uneven distributions (e.g., aa-ag, ah-an).
  2. Load Balancing:

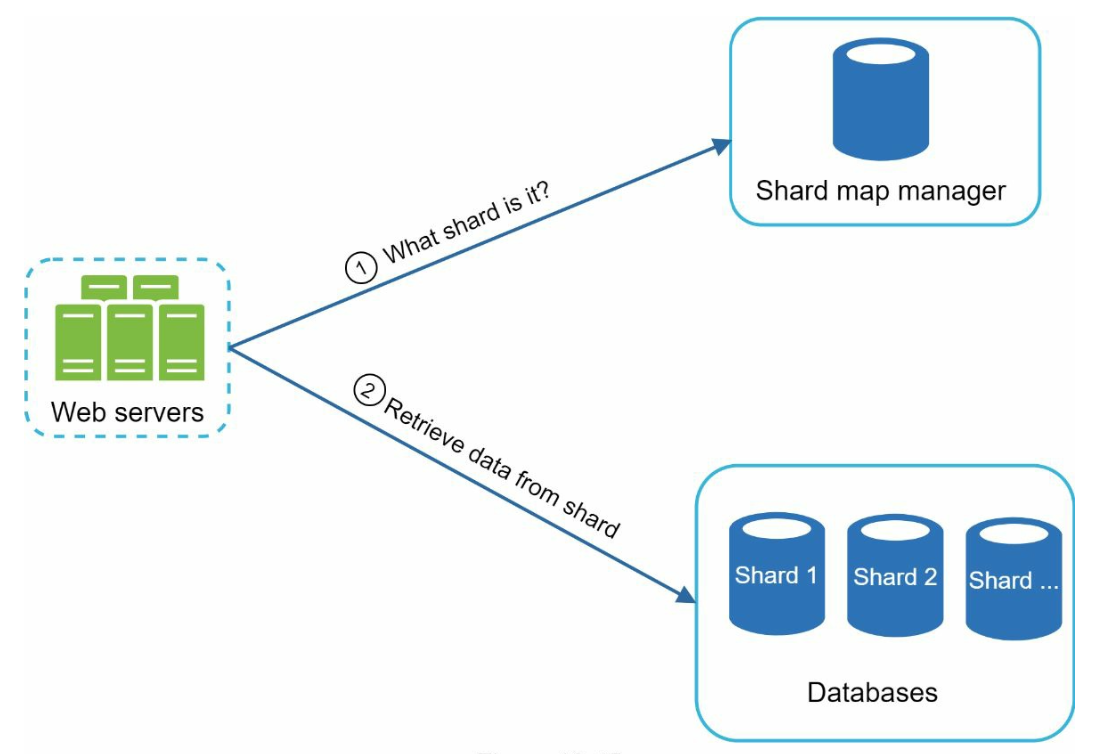

    Sharding
    - Use a shard map manager to route requests to the appropriate server.

Step 4: Advanced Features

Multi-Language Support

  1. Unicode Characters: Use Unicode to support non-English languages.
  2. Country-Specific Tries: Build separate tries for different countries or regions.
  • Handle real-time events by dynamically updating trie nodes or weighting recent queries more heavily.
